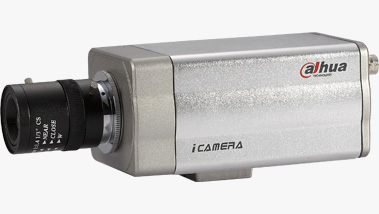

Camera IP Box Day/Night IPC-F645P

Camera IP Box Day/Night,
compresie H.264, realtime, 25fps@704x576,
1/3\" Sony SuperHAD CCD, 480 TVL


Caracteristici
Tip CCD 1/3\" Sony SuperHAD CCD
Rezolutie camera 480 TVL (600TVL A/N)

Pixeli efectivi 752(H)x582(V)
Day/Night Da
Lentila compatibila
3.5mm~8mm/F1.2
Standard lentila CS Mount
Iluminare minima 0,1 Lux color, 0,01 alb-negru
Raport semnal/zgomot >50 dB
Gamma 0.45
AGC Auto
AWB Auto
Shutter electronic 1/50~1/1000000
Compresie H.264/MJPEG
Vizualizare/Inregistrare D1/Half-D1/CIF/QCIF
Numar frame-uri 1~25fps
Bitrate 32Kbps~2Mbps
Detectie miscare 22*18 zone, 6 nivele sensibilitate
Dual stream main stream,extra stream
Compresie audio G.711/G.726/AMR
Intrari audio 1-RCA
Iesiri audio 1-RCA
Alarma 2-in, 1-out
Inregistrare locala MicroSD card
IR 20m
RS485 Da
PoE Nu
Alimentare DC12V
Consum 6W
Temperatura functionare 0° ~ 50°C
Dimensiuni 186mm×99mm×94mm
Greutate 1,5Kg
OS Linux
Browser IExplorer 6.0+
Securitate user,password, multi level security
Conexiuni 10 conexiuni simultane
Wireless Nu
SDK Librarii dezvoltare C++,demo,surse
CMS EPSS (Enterprise Pro Surveillance System)
