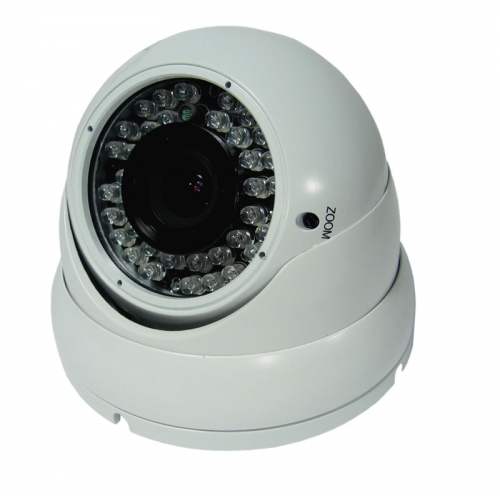

Camera color de inalta rezolutie KM-150HQ
Dome color de exterior, 1/3 SONY SUPER HAD II CCD
High Sensitivity, 540 TVL, SONY HQ1 DSP
Lentila varifocala 4-9mm, Day/Night cu filtru IR fix
Reglaj zoom si focus din exterior, IP66.
Caracteristici
Senzor CCD 1/3″ SONY Super HAD II CCD
Pixeli efectivi ( H*V ) PAL:795×596
Rezolutie camera 550/580 Linii TV (color/AN)
Frecventa ceas PAL:28.375
Raport Semnal/Zgomot > 48 dB
Tip scanare 2:1 interlace
Sensibilitate 0 Lux ( IR ON )
Sincronizare Interna,Sincronizare negativa.
AES PAL:1/50s~1/100,000s
Gamma 0.45
Iluminator IR 36 led max 30m
Prag IR <10 Lux (CDS)
Activare IR CDS Auto Control
Iesire video 1Vpp,75 Ω
AGC Auto
Alimentare/Consum 12VDC(±10%)/ 400mA
Lentila 4-9 mm (9-22 optional)
Grad protectie IP66
Dimensiuni (mm) 146(W)×83(H)×80(D)
Greutate (g) 1180
Temperatura stocare -30~ +60 °C
Temperatura functionare -20~ +50 °C
